DDGS Production Plant / DDGS Engineering(Dried Distillers Grains with Solubles)
Main features of Myande's DDGS engineering include:
1. Reasonable and compact process ensures hygienic environment
2. Naturally colored and homogeneous final product
3. Full use of exhaust hot air as heat source with zero consumption of new steam
4. Our custom-designed automatic control system that is reliable and efficient
DDGS Wort SeparationSection
Myande provides custom-designed wort separation solutions based on users’ specific needs and requirements. Horizontal screw presses or plate filters are used for separating wort into wet solids and clear liquid. The process is designed to ensure minimum moisture in the wet solids and minimum solids in the clear liquid for subsequent processing. Myande's custom-designed automatic control system guarantees reliability and efficiency.
Myande provide wort separation engineering services with a capacity ranging from 30,000 tons to 200,000 tons.

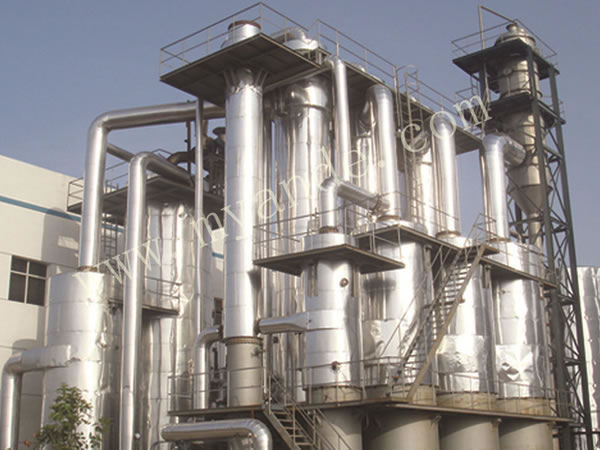

DDGS Concentration Section
Key technical advantages of Myande's DDGS evaporation system is that it uses exhaust hot air from the tube bundle dryer and secondary steam from the flash dryer as heat sources, thus eliminating the need for fresh steam. Myande custom-designed automatic control system guarantees reliability and efficiency.
Myande provides DDGS evaporation and concentration engineering services with a capacity ranging from 5 t/h to 100t/h.
DDGS Drying Section
Myande DDGS drying process uses a tube bundle dryer to dry the mixture of wet distiller grains from the decanter and concentrated syrup from the evaporator. The tube bundle dryer uses parallel combination technology to improve the heat transfer coefficient and heat utilization. The dry DDGS is conveyed to the storage buffer tank through a negative pressure pneumatic conveying system. After the auto packing machine packages the final product, it is transported to the warehouse. The finished products are naturally colored and have uniform quality. Advanced auto-control and central computer control systems allow the whole DDGS drying production line to operate automatically and smoothly.
Myande provides DDGS drying engineering services with a capacity ranging from 30,000 t to 200,000 t.
Our Engineering Capacity
1. Provide DDGS engineering services and equipment with different capacities.
2. Experienced professionals provide first-class processes and equipment design.
3. Provides turnkey engineering project services with highly customized plant designs.
4. Advanced automatic control system for high reliability of the whole production line.
