Degerming Mill / Degerming System

Degerming Mill / Degerming System

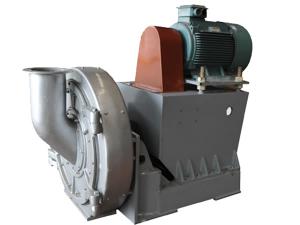

The MTPM model degerming mill is used to crumble corn after steeping and works with the germ cyclone to separate corn germ from germ milk. In order to increase the starch equipment's recovery rate of corn germ, we recommend this two-stage crumbling process. Adjusting the gap between the moving and fixed discs of the milling machine reduces the breakage rate of corn germ.

Features
1. Large output
2. Low consumption
3. Stable performance
4. Convenient operation
5. Self-protective functions

Parameters
Model Diameter (mm) Rotation Speed (r/min) First Breaking (corn) Second Breaking (corn) Power(kw)
Handling Capacity (t/h) Degerming (%) Breakage Rate (%) Handling Capacity(t/h) Degerming (%) Breakage Rate (%)
MTPM400 400 970 2.0-3.0 85 4.0-6.0 2.5-4.5 15 10.0-12.0 11
MTPM600 600 2.5-4.0 85 3.5-6.0 18.5
MTPM800 800 4.0-8.0 85 6.0-12.0 37
MTPM920 920 8.0-15.0 85 12.0-16.0 55-75
