Tube Bundle Dryer

Tube Bundle Dryer
Tube Bundle Dryer
Tube Bundle Dryer
Tube Bundle Dryer
Tube Bundle Dryer
Tube Bundle Dryer
Tube Bundle Dryer
Tube Bundle Dryer
Tube Bundle Dryer
Tube Bundle Dryer

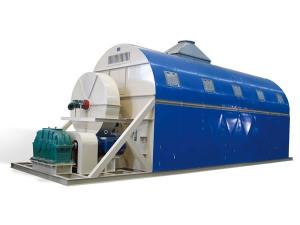

Myande's MGZG tube bundle dryer is a multi-purpose drying equipment for both counter current drying applications as well as co-current heating applications.

Features
1. Low heat consumption
2. Suitable for a variety of loose materials
3. Large capacity and high moisture evaporation, making this indirectly heated dryer ideal for material with high moisture content
4. High adaptability (capable of adjusting drying time based on material properties and moisture requirements)
5. High degree of automation for both continuous processing and batch operation as needed
6. Effectively insulates drying chamber in a negative pressure condition for a clean work area and minimal noise
7. Compact design with minimum auxiliary equipment and consumable parts for easy installation and low maintenance cost

Tube Bundle Dryer
Tube Bundle Dryer

Parameters

Model Heat Exchange Area (m2) Drying Capacity (KgH2O/m2·h) Rotation Speed (rpm) Power (Kw)
MGZG400 400 2.5~4.5 7~11 37
MGZG500 500 37
MGZG600 600 45
MGZG700 700 45
MGZG800 800 75
MGZG1000 1000 90
MGZG1200 1200 110
MGZG1500 1500 160
