Multiple Effect Evaporator

Multiple Effect Evaporator
Multiple Effect Evaporator
Multiple Effect Evaporator
Multiple Effect Evaporator

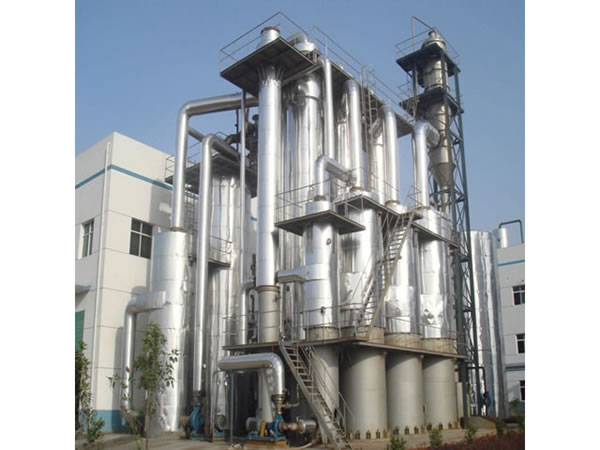

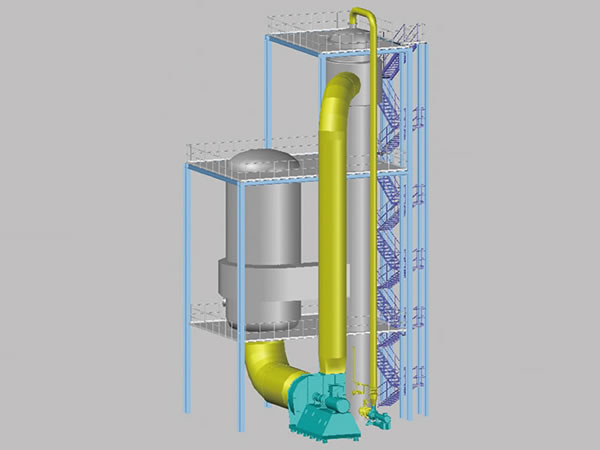

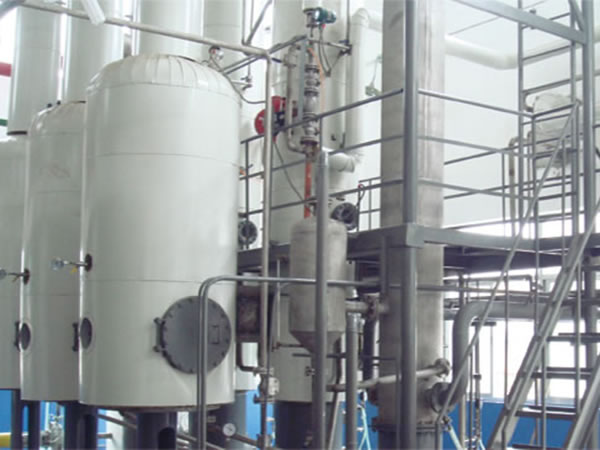

The MZFJ model multiple effect evaporator is widely used to evaporate and concentrate starch syrup, zymotic liquid, starch steeping solutions, dairy products, beverages, high concentrate organic waste water, and chemical products. This multi-effect evaporator machine is energy efficient with a short heating time and high proportions of concentration. These flexible falling film evaporators can be combined into bi-effect, triple-effect, or quadruple-effect and corn steeping evaporation systems depending on your need. Both live steam and exhaust steam can be used as a heat source. As material falls from the top to the bottom of the machine in a helical film, it exchanges heat with steam surrounding tubes. The temperature difference is consistent and secondary steam is recycled for energy efficiency.

Parameters
Model Evaporation Capacity (kg/h) Steam Pressure (MPA) Concentration of Incoming Material (%) Concentration of Discharged Material (%)
MZFJ-9 9000 0.6-1.0 (absolute pressure) 6.0-7.0 (for steeping solution) 42-45 (for steeping solution)
MZFJ-10 10000
MZFJ-12 12000
MZFJ-24 24000
MZFJ-30 30000
MZFJ-40 40000
MZFJ-50 50000
MZFJ-100 100000
