Pressure Arc Screen / Sieve Bend Screen

Pressure Arc Screen / Sieve Bend Screen
Pressure Arc Screen / Sieve Bend Screen

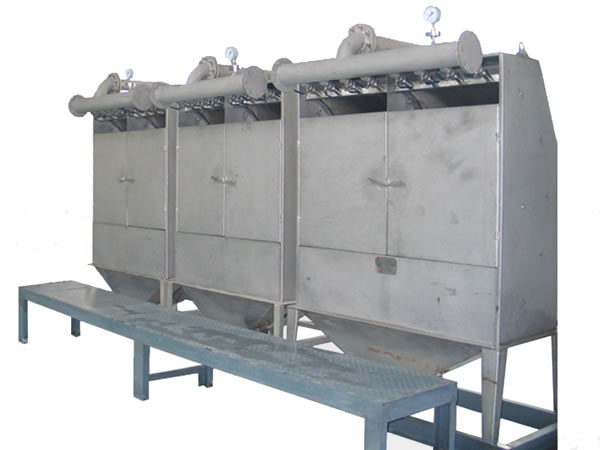

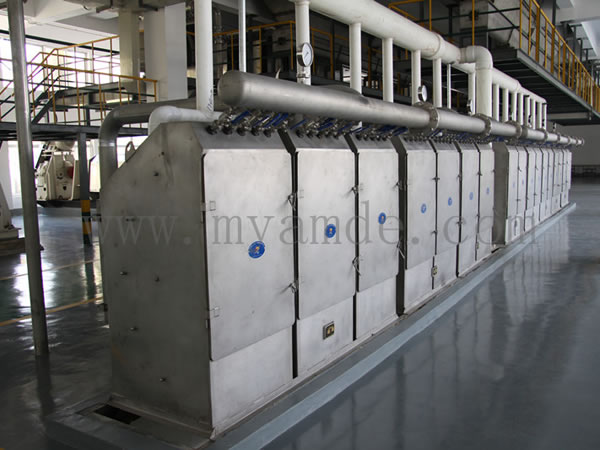

The MYQS model pressure arc screen separate and wash corn slurry during starch processing. The sieve bend screens are widely used in other industries as well for screening liquid to remove any unwanted debris. These bend screeners come with single, double, or triple sieves.

Features
1. Minimal noise.
2. Compact structure.
3. Easy to operate with minimal blockage.
4. Designed with vent and fast-opening gate.
5. Stable spraying pressure for efficient screening.

Parameters
Model Structure Screen Capacity (m3/h) Feed Pressure (MPa) Screening Efficiency (%)
Width (mm) Arc Angle ( 。c) Gap (um)
MYQS585 Single Sieve 585 120 35-45 0.25-0.4 ≥160
Double Sieves 50 70-90
Triple Sieves 75 105-135
MYQS710 Single Sieve 710 100 40-60
Double Sieves 120 80-120
Triple Sieves 150 120-180
