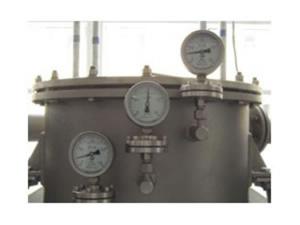

Vertical Hydrocyclone

Vertical Hydrocyclone
Vertical Hydrocyclone
Vertical Hydrocyclone
Vertical Hydrocyclone
Vertical Hydrocyclone
Vertical Hydrocyclone
Vertical Hydrocyclone
Vertical Hydrocyclone
Vertical Hydrocyclone

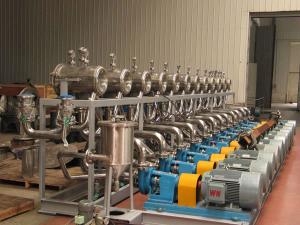

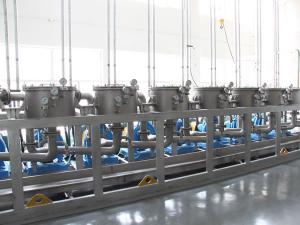

Myande's MDXL model vertical hydrocyclones are used to extract fine starch milk, recover and concentrate starch, and washing and recover modified starches.

Features
1. The vertical cyclone are available in 6-stage, 9-stage and 12-stage washing systems and can be supplied with an independent recovery system.
2. Counter-current washing processes is effective while consuming minimal water.
3. All of the cyclone's parts that come in contact with material is made of stainless steel.
4. Easy installation and maintenance.

Vertical Hydrocyclone

Parameters

Name Model Capacity (10,000 tons of starch per year) Power (km)
(first stage)
Power (km)
(other stage)
Vertical Cyclone MDXL550-Ⅰ 12 55 45
Vertical Cyclone MDXL550-Ⅱ 20 75 55
Vertical Cyclone MDXL550-Ⅲ 30 95 75
Vertical Cyclone MDXL660 12 110 75
