Low Temperature Desolventizer

Low Temperature Desolventizer
Low Temperature Desolventizer
Low Temperature Desolventizer
Low Temperature Desolventizer

Myande's low temperature desolventizer (A and B drum) is an innovative oilseed processing equipment based on our customer needs and incorporating low temperature desoventizing technology. Using all-around heating and stirring ensures that the meal will be completely desolventized and albuminous degeneration kept low.

Features
1. Using a floating brace makes the drum well suited for expansion and contraction processes.
2. Special bearings keep the rotor moving axially.

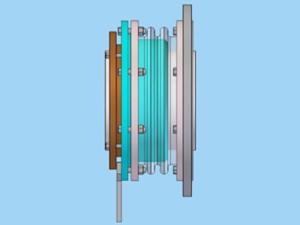

3. Flexible seal assembly adjusts the gap and position of the seal automatically.
4. Adjustable lifting board controls the gap between rotor and drum wall.
5. Gear drive ensures comfortable and reliable driving. The oilseed desolventizer's driving efficiency is high and power consumption low.

Low Temperature Desolventizer

Parameters

Name Type Power (KW) Output (t/d)
Low temperature desolventor A YDA300 45 800
YDA320 55 1000
Low temperature desolventor B YDB300 45 800
YDB320 55 1000
