Oilseed Conditioner

Oilseed Conditioner
Oilseed Conditioner
Oilseed Conditioner
Oilseed Conditioner
Oilseed Conditioner
Oilseed Conditioner
Oilseed Conditioner

Myadnde’s oilseed conditioner creates steam to indirectly heat and adjust the moisture content during production of soybean, rapeseed, corn, cottenseed, or palm oil processes.

Features
1. Stainless steel oval tube with excellent thermal conductivity and flow rate.
2. The oilseed processing conditioner moves material along with gravity, reducing power and operation costs.
3. Long retention time of raw materials, ensuring even and thorough conditioning.
4. Compact structure for easy use.
5. Capable of reducing moisture up to 5% in raw materials with high moisture content.
6. A feeding system at the oilseed dehydrator's material inlet provides even distribution and a motor discharges material.
7. This moisture reducing equipment has a temperature monitor and alarm for high and low levels.
8. Modular design is convenient for dissembling, combining with other equipment, and cleaning.
9. Steam heating combined with hot air ensures efficient melting and moisture removal of material.

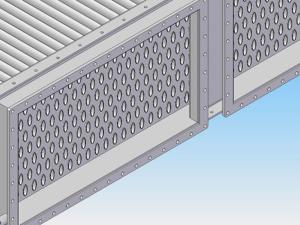

10. The feeding section has a refining device which evenly distributes material. Also, it prevents the lower level steam pipe from impact

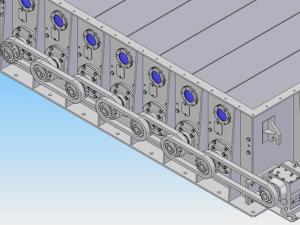

11. The discharging section uses a variable frequency motor that can adjust the rate of material flowing and control the stopping time.

tbody>
Technical Parameters
Number Model Steam Pressure(Mpa) Capacity ( t/d )
1 YGZT340 0.1 1000-3000
2 YGZT260 0.1 500-1500
